Dry Material Handling

Eliminate Dry Powder Clumping

When working with dry polymers, it is crucial that they are added and hydrated properly to prevent problems such as clumping and process inefficiency. If the dry polymer particles are not individually hydrated, clumps of undissolved polymer will form. These clumps could result in plugged filters, ball valves and check valves. Adding dry polymers too quickly or too slowly can create inconsistent batches in your liquid system, which is why a dry polymer dispenser is essential. SNP’s material handling eductor, also known as a hootonanny or liquid jet pump, allows dry materials to be hydrated quickly and efficiently without clumping. SNP’s eductor provides an efficient system for the addition of water-soluble polymers such as guar gum, polyvinyl alcohol, sugar, starches, sodium alginate, polyacrylamides and more. Using venturi action, our dry material eductor pulls the dry product uniformly into a water vortex thus wetting the particles and ensuring complete hydration of these particles in the system. Send us an email or call to start a conversation about working with us.

An SNP dry material eductor is easy to install for immediate application and use. See the steps below:

  1. Give it access to a water source of at least 50 psi to create a strong vacuum.
  2. Once your water pressure is up to 50 psi, add your material to the intake.
  3. Allow the eductor to do its job and completely wet and disperse the dry polymer particles.

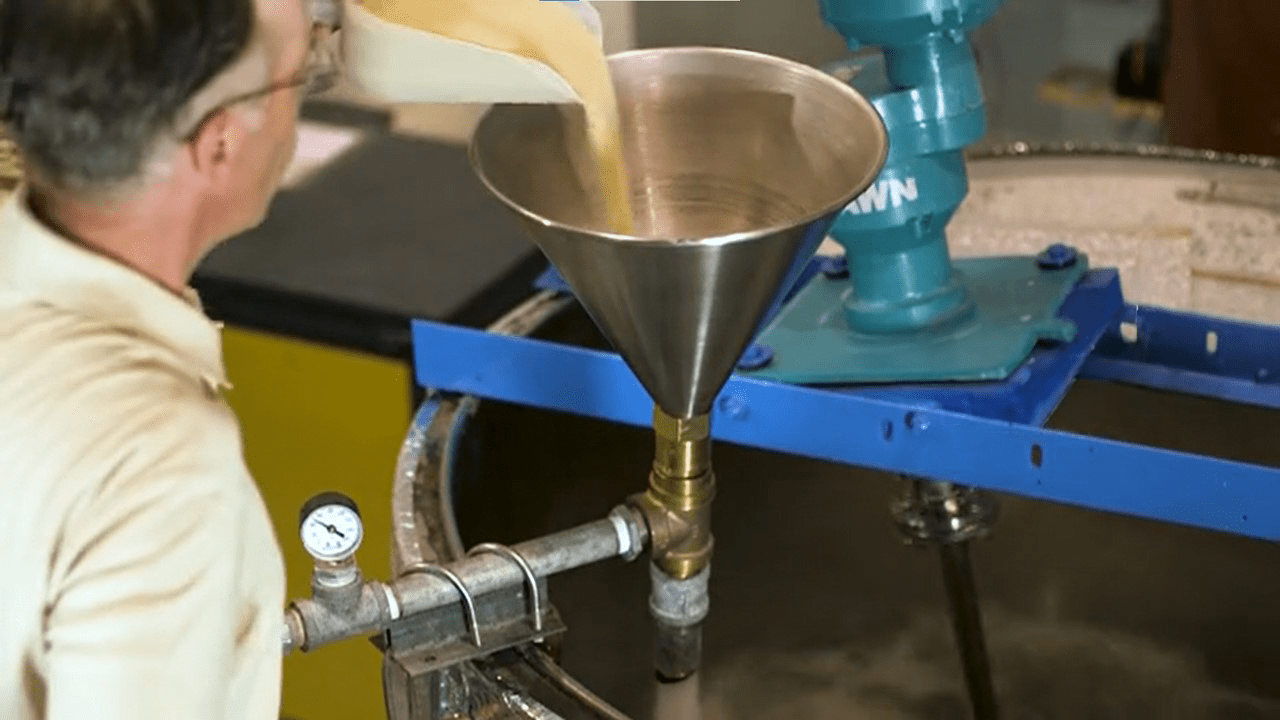

An SNP dry material handling eductor can be used manually by adding material via the large funnel or it can be integrated into an automated system.

The SNP eductor is designed for long lasting service. SNP stocks a full line of replacement parts should your eductor require service, or a spare dry zone insert. Every SNP dry polymer eductor includes complete installation and usage instructions.

SNP’s dry material eductor is easy to install for immediate application and use. See the steps below:



  1. Connect it to a water source of at least 50 psi to create a strong vacuum.
  2. Once your water pressure is up to 50 psi, add your material to the intake.
  3. Allow the eductor to do its job and completely wet and disperse the dry polymer particles.

SNP’s dry material handling eductor can be used manually by adding material via the large funnel or it can be integrated into an automated system..

The SNP eductor is designed for long lasting service. SNP stocks a full line of replacement parts should your eductor require service, or a spare dry zone insert. Every SNP dry polymer eductor includes complete installation and usage instructions.

SNP’s dry material eductor is easy to install for immediate application and use. See the steps below:

  1. Connect it to a water source of at least 50 psi to create a strong vacuum.
  2. Once your water pressure is up to 50 psi, add your material to the intake.
  3. Allow the eductor to do its job and completely wet and disperse the dry polymer particles.

SNP’s dry material handling eductor can be used manually by adding material via the large funnel or it can be integrated into an automated system.

The SNP eductor is designed for long lasting service. SNP stocks a full line of replacement parts should your eductor require service, or a spare dry zone insert. Every SNP dry polymer eductor includes complete installation and usage instructions.

An SNP dry material eductor is easy to install for immediate application and use. See the steps below:

  1. Give it access to a water source of at least 50 psi to create a strong vacuum.
  2. Once your water pressure is up to 50 psi, add your material to the intake.
  3. Allow the eductor to do its job and completely wet and disperse the dry polymer particles.

An SNP dry material handling eductor can be used manually by adding material via the large funnel or it can be integrated into an automated system.

The SNP eductor is designed for long lasting service. SNP stocks a full line of replacement parts should your eductor require service, or a spare dry zone insert. Every SNP dry polymer eductor includes complete installation and usage instructions.
